Enjoy massive long-term energy savings. With Reclaim Energy Heat Pump Hot Water you can save up to 80% off your hot water bill. Why? Because the system uses less energy and has a higher thermal output than electric or gas water heaters. The top-down Heat Pump return heating design ensures quick water recovery. The system is whisper quiet and up to 200% more environmentally friendly than systems that use standard refrigerants.

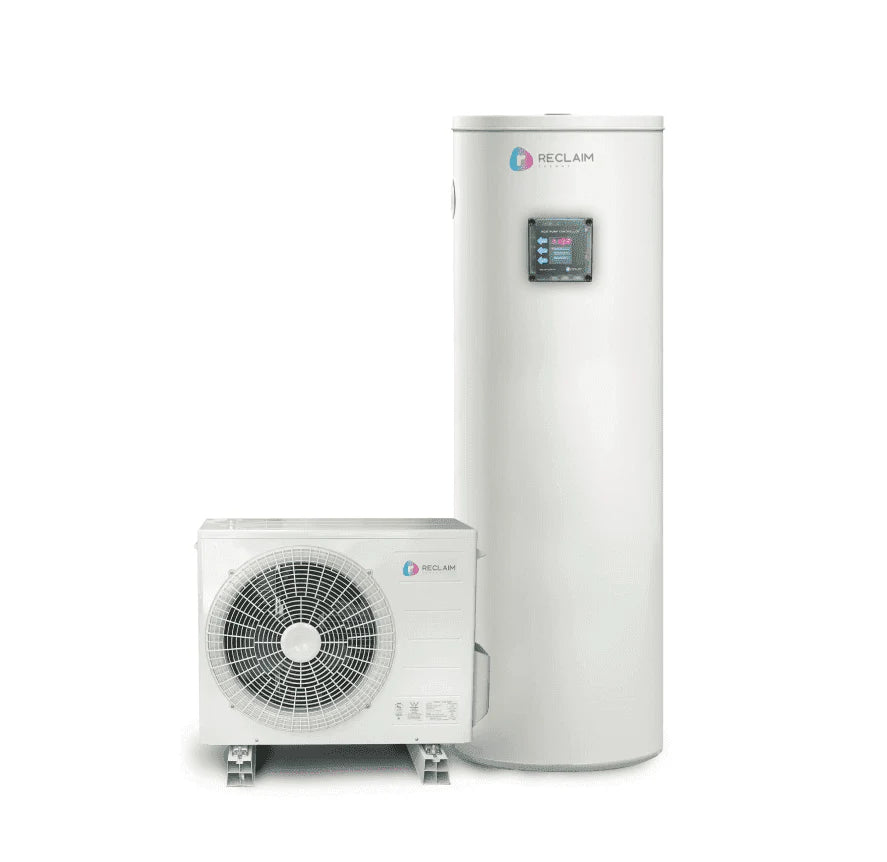

The Reclaim Energy CO2 Heat Pump is one of the first truly smart hot water systems available on the market. In essence, it works like a 3-4 kWh battery for your home. Its controller has been designed to be complimentary to a household's PV solar system thereby allowing householders to take advantage of any surplus energy they are creating before it gets exported back to the grid. The system qualifies for all the Solar Hot Water rebates (STCs, VEECs, REES, ESCs). With a payback period of 3 years* and up to 15 years Warranty** it the smart energy hot water solution.

It is notable that the V2 system model numbers are different from the previously supplied system model numbers. The following codes must be used for rebate applications such as STC, ESC, and VEECs. In terms of STC changes between V1 and V2 models, there has been slight improvement of about 1-3 STCs for different model IDs depending on the system model number and zone.

The Boost mode can also be turned on and off via a momentary press of the boost button. When activated, temperature control mode is enabled, as above, allowing the heat pump to turn on. The heat pump will remain on until the temperature reaches 59˚C (plus 3 seconds), or the 6-hour period has elapsed, whichever occurs first. The On Call LED will start flashing, indicating the heat pump has been turned on via Boost Mode. If inadvertently pressed, boost mode can be turned off by pressing the Boost button again.

The temperature control mode can be enabled and disabled during certain periods within the 24 hour cycle, as outlined in the options page. The user can select to permanently enable, four preset time periods or can opt for two adjustable time periods (e.g. time zone 1 minimum hours is 3 hours and time zone 2 minimum hours is 0 hours. Also note regardless of what is set for the fi rst time zone, the system for the fi rst cycle only runs until it reaches the set point temperature of 59°C). For the second and subsequent time settings, the time control takes priority over the temperature mode (i.e. the heat pump operation may stop due to time settings before the Toff temperature of 59°C is reached.) When the Time Control Mode is active the Power ON LED fl ashes.

The “temperature control” turns the heat pump on at the T-on setting (37°C), and off at the T-off setting (59°C). On the first start, the heat pump is turned on if the temperature is less than 59°C. On the subsequent starts the heat pump is turned on when the temperature in the tank drops to the T-on setting (37°C) and turns off when the temperature reaches the T-off setting (59°C) which signifies modern HVAC innovation that maximizes efficiency while minimizing space requirements.
