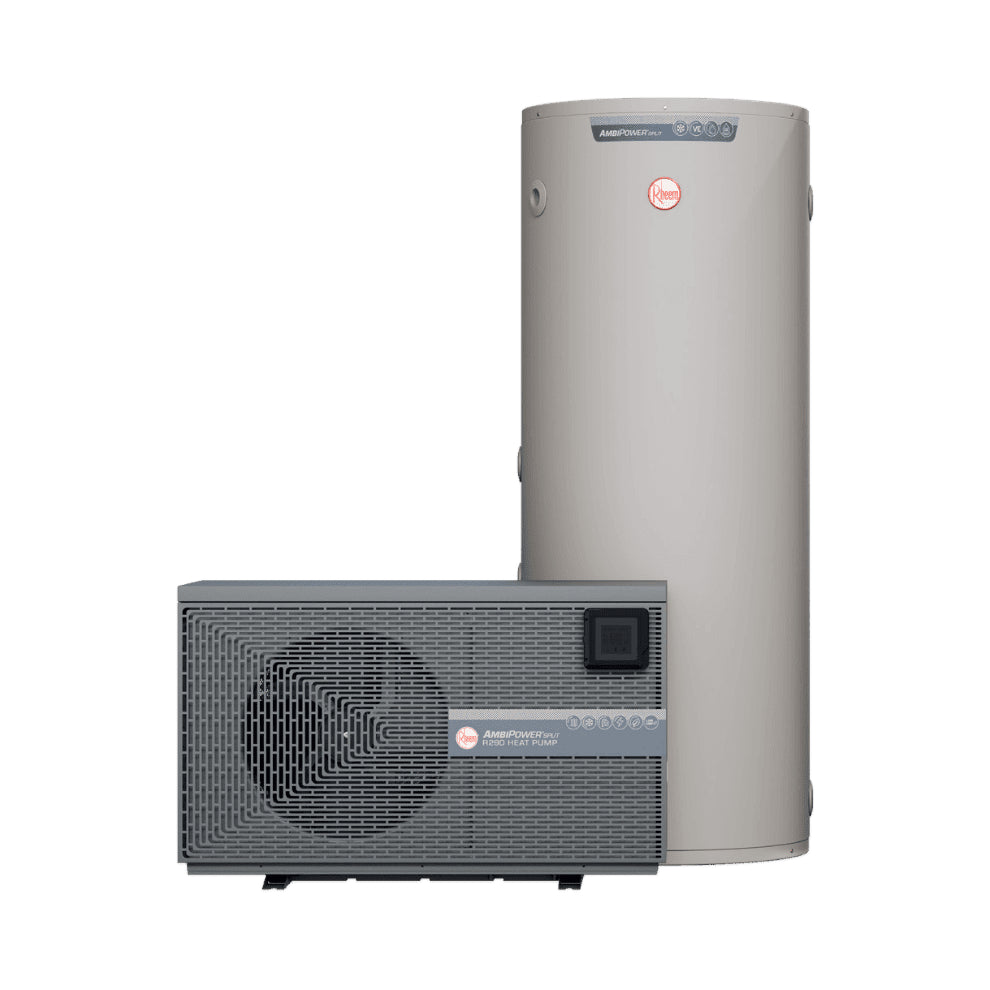

Rheem Ambipower Split 5kW 315L VE Heat Pump

Rheem Ambipower Split 5kW 315L VE Heat Pump

$4,862.00 AUD $3,740.00 AUD
Sale Sold out

The AmbiPower® Split 5kW Heat Pump is ideally suited for homes with narrow spaces or as a replacement for a similar-sized electric water heater. It is an energy efficient alternative for areas where a traditional solar...

Not sure? Please ask our friendly team on 0475 666 999

Description

The AmbiPower® Split 5kW Heat Pump is ideally suited for homes with narrow spaces or as a replacement for a similar-sized electric water heater. It is an energy efficient alternative for areas where a traditional solar water heater may not be suitable.

The AmbiPower 5kW Split system (565E315 / 565E315R0) is a powerful Ultra Low GWP water circulated split heat pump paired with 315L Vitreous Enamel (VE) tank.

How to Request Site Specific Quote?

  1. Choose your Installation Type from the dropdown.
  2. Click on Get a Quote
  3. Fill in your details and Upload photos of your existing unit.
  4. One of our specialists will then review your request to formalise your quote.

Technical Specification

Type Heat Pump Hot Water Heater
Storage Capacity 315 litres
Model number 565E315
Refrigerant: R290 ultra-low GWP 0.02
Tank:
Height 1640 mm
Width 640 mm
Weight (empty) 89 kg
Heat Pump Module:
Length 985 mm
Width 389 mm
Height 611 mm
Brand Rheem

How are the prices calculated?

  1. Prices calculated are based on the installation type you select above.
  2. All prices are after the government rebates & incentives including the Solar Victoria Rebate
  3. Prices are for like-to-like swap
  4. Additional charges will apply for unit relocation and non-standard switchboards.
  5. Advertised prices are only applicable in Melbourne Metro, Greater Geelong & Mornington Peninsula.

Warranty

  • Cylinder: 10 years on parts, 3 years on labor.
  • Sealed refrigeration system (including labour): 3 years parts & labour
  • Other Components: 1 year on both parts and labor.
View full details

Features at a Glance

4.6kW heating capacity
Coefficient of Performance (COP) of 4.5 @ 19oC
Suitable for cold climates with an operating range from -7oC to +43oC
Uses R290 Ultra Low refrigerant - GWP of 0.02
Suitable for up to 6 peoplex
Can save up to 78% on your water heating energy consumption compared to an electric water heater in Zone 3#
315 litre vitreous enamel-lined tank suitable for good water conditions.
Touchscreen controller provides optimum visibility, product performance information, and user-friendly operation
Split heat exchanger unit designed to be mounted on the ground or on the wall to minimise space requirements. The tank can be installed up to 5 metres away or indoors (e.g. inside a garage) and is a water circulation system. The heat pump module is mountable up to 2 metres high on walls, making it ideal for narrow spaces.
Eligible for STCs (may be eligible for additional incentives in some states)
User-friendly touch screen LED display
Refer to the AmbiPower 5kW Split System Suitability Map for your state to see if it is suitable for your home.

Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos

Warranty Information (warranty conditions apply)

10 years cylinder
3 years cylinder labour
3 years sealed systems supply including labour
1 year parts supply and labour on all other parts

Conditions Apply

*The warranty periods above apply to installations in a single-family domestic dwelling only. For further details, please refer to the Owner’s Guide available in the Downloads tab on this page. Without limiting the periods shown in the table in Clause 3.1, a 5-year whole-of-product warranty applies (inclusive of labour incurred in respect of a valid claim under this warranty or the Australian Consumer Law in relation to a heat pump water heater) where:
a. A hot water rebate has been received under Solar Victoria’s Solar Homes Program for a heat pump water heater installed from 1 July 2023, and / or
b. Victorian Energy Efficiency Certificates (VEECs) have been created for a heat pump water heater installed from 1 February 2025, or
c. Energy Savings Certificates (ESCs) have been created for a heat pump water heater installed from 1 December 2025.
For further details, call 131 031. Proof of receipt of the rebate and / or proof of VEECs or ESCs being created, i.e. installation quote showing number of VEECs or ESCs and dollar value, plus proof of purchase (as applicable) must be produced at the time of the service call.


Rheem warranty may not apply if the water heater is connected to a water supply which: has a Chloride content >250mg/L; a pH <6.0 or >9.5; has a Total Dissolved Solids content >600mg/L; is scaling with a Saturation Index >+0.8, or; is corrosive with a Saturation Index <-1.0.
#Energy savings of up to 78% in Zone 3 based on TRNSYS modelling on hot water energy consumption when replacing an electric water heater (min 16 hours/day). Any savings will vary depending upon your location, type of water heater being replaced, hot water consumption and fuel tariff.

x Based on 7 min showers at 42°C mixed water temperature in moderate climate, time of use tariff.
