iStore 270L - PASHW015-270LD-FL02
iStore 270L - PASHW015-270LD-FL02

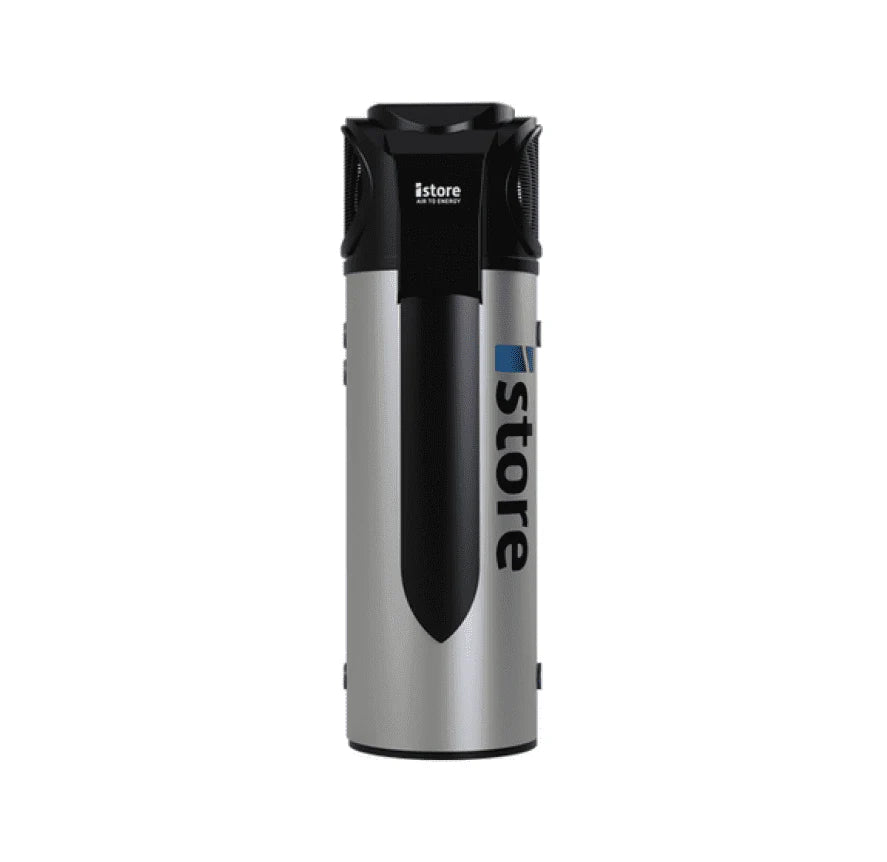

iStore 270L (H-PASHW015-270LD-FL02) Heat Pump
Looking for a quality Heat Pump Hot Water system and also working on a budget? Look no further than the quality Istore Heat Pump Hot Water System. Available in 180L...
Not sure? Please ask our friendly team on 0475 666 999
Couldn't load pickup availability
Description
Description
iStore 270L (H-PASHW015-270LD-FL02) Heat Pump

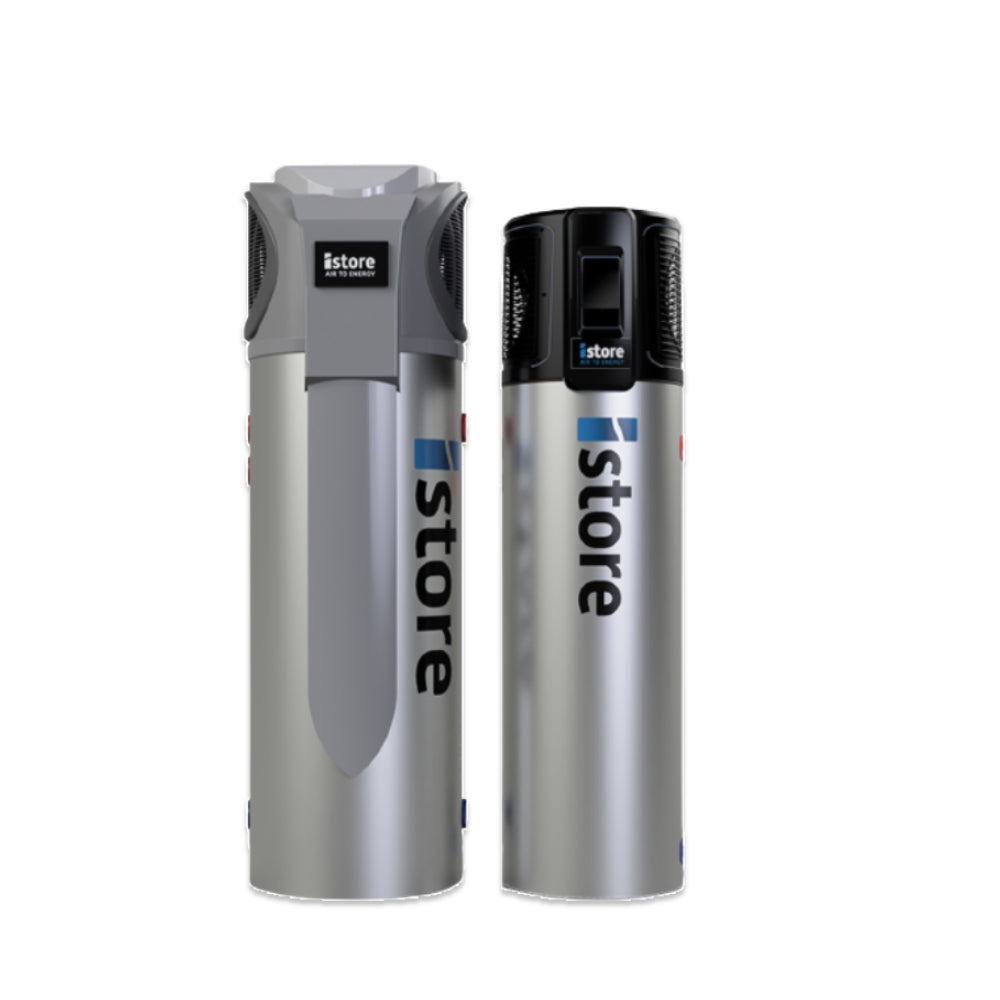

Looking for a quality Heat Pump Hot Water system and also working on a budget? Look no further than the quality Istore Heat Pump Hot Water System. Available in 180L & 270L tank Sizes with excellent warranties.
How to Request Site Specific Quote?
How to Request Site Specific Quote?
- Choose your Installation Type from the dropdown.
- Click on Request for Quote.
- Fill in your details and upload photos of your existing unit.
- One of our specialists will then review your request to formalise your quote.
Technical Specification
Technical Specification
| Height |
1957 |
|---|---|
| Diameter |
540 |
| Height to water inlet |
60 |
| Height to water outlet |
1240 |
| Hot water condensation |
1240 |
| Height to PTR valve |
1240 |
| Height to anode |
1140 |
| Net weight |
93 |
How are the prices calculated?
How are the prices calculated?
- Prices calculated are based on the installation type you select above.
- All prices are after the government rebates & incentives including the Solar Victoria Rebate.
- Prices are for like-to-like swap.
- Additional charges will apply for unit relocation and non-standard switchboards.
- Advertised prices are only applicable in Melbourne Metro, Greater Geelong & Mornington Peninsula.
Warranty
Warranty
|
5 Years Tank |
|
5 Years heat pump unit |
|
5 Year labour warranty |

Up to 27% of your energy bills can come from heating your hot water.
iStore technology will clobber your electricity costs effectively using renewable energy
Without the need for solar panels, the iStore's advanced technology can cut your hot water heating costs by up to 70%. It uses intelligent systems to convert air into hot water through the efficient transfer of thermal energy.
Water heating cost comparion
Heating water makes up around 25% of electricity costs for the average Australian household.
The iStore cuts hot water energy consumption by two-thirds compared to traditional electric or gas storage systems, while also reducing CO2 emissions by 2.9 tonnes annually.
By installing an iStore, you could save up to $1,000* each year on your energy bills.
How iStore works
1. A fan draws in air, containing heat energy, across the evaporator
2. The evaporator turns the liquid refrigerant into a gas
3. The compressor pressurises the refrigerant into a hot gas
4. The hot gas inside the condenser coil heats the water inside the coil- wrapped tank
5. The refrigerant reverts back to a liquid after heating the water and continues to the evaporator for the process to start again
6. The cycle continues until the set target temperature is achieved.
7. As water is used in the home, the cycle will restart once the temperature in the tank has dropped below 45 °C
Features & Benefits
-
Energy Efficient
The iStore uses advanced technology to store 4 kW of heat energy for every 1 KW of power consumed
-
Optimal Design
The external wrap-around heating coil provides maximum thermal energy
-
Easy to Install
All-in-one integral unit, the iStore is easy and quick to install
-
Intelligent Mode
The iStore will monitor and evaluate the ambient temperature and automatically select Economic Heating Mode or Hybrid Heating Mode.
-
Hybrid Heating Mode
When quick recovery is required, this mode will activate the compressor & electric element for the fastest recovery. Hybrid Heating Mode is designed when short-term rapid water heating is required i.e.: Additional guests in the home or quick recovery is required after large hot water use such as a bath or spa. Once the target temperature is reached in this mode, the system will automatically reset to Economic Heating Mode as the default setting
-
Electric Element Heating Mode
The electric element will heat the water to the pre-set temperature and turn off once this is reached. The electric element heating mode is classified as a one-shot boost and will automatically turn off once the target temperature is reached. You can activate the electric element in any of the above operating models
-
Vacation Mode
For use when away on holidays, enter the date of your return and the smart iStore will not use energy while you're away & prior to your return. Vacation mode reduces energy consumption.
-
Economic Heating Mode
Most efficient setting as water will be heated via the compressor only. The electric element can be activated manually whilst in economic heating mode for faster recovery of water.
