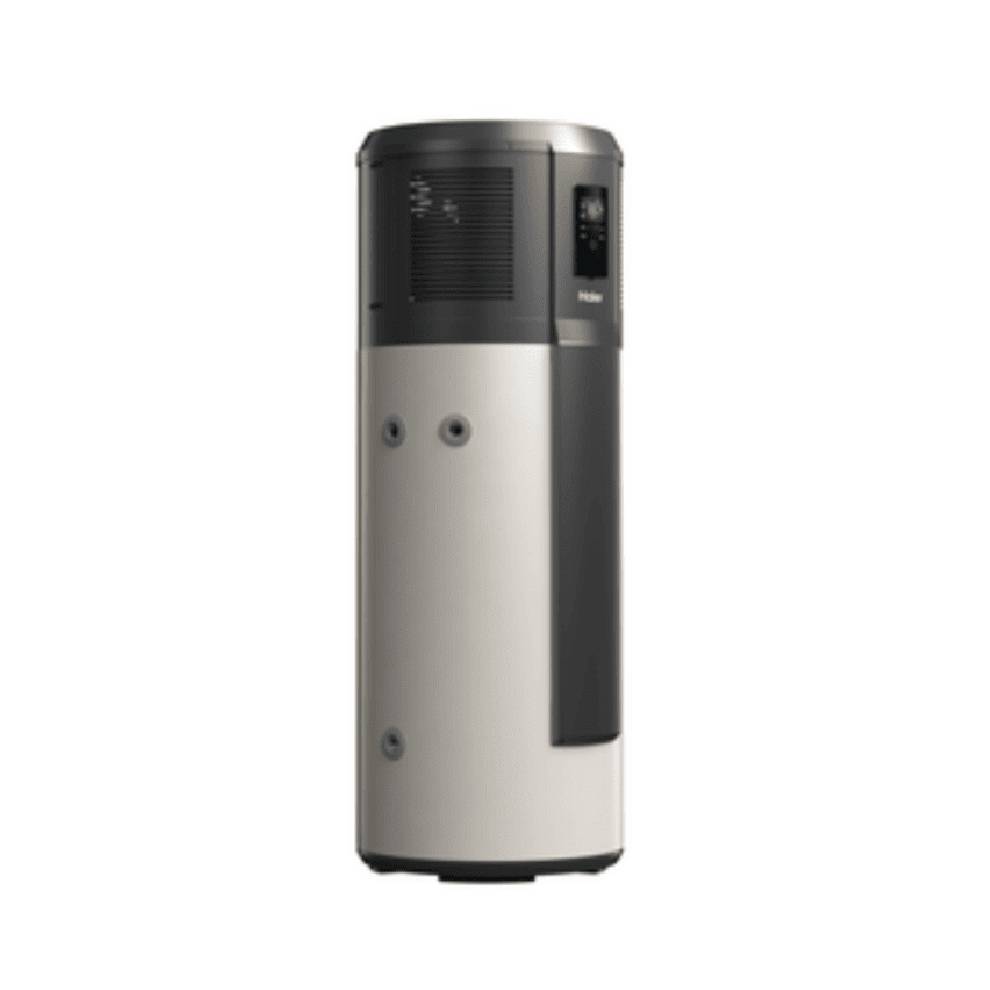

Fisher & Paykel/Haier 200 litre

Fisher & Paykel/Haier 200 litre

$2,522.00 AUD $1,940.00 AUD
Sale Sold out

Heat Pump Water Heaters bring new innovation to hot water heating – using less energy than standard electric water heaters

Haier Heat Pump Water Heaters have been designed to give you hot water reheating efficiency....

Not sure? Please ask our friendly team on 0475 666 999

Description

Heat Pump Water Heaters bring new innovation to hot water heating – using less energy than standard electric water heaters

Haier Heat Pump Water Heaters have been designed to give you hot water reheating efficiency. The Split System has flexibility in installation location and the Monoblock has been designed to make installation as simple and familiar as possible.

Capacity
Total water capacity: 195L

Features
Anode type: Magnesium
Ingress protection: IP24

Performance
Ambient temperature working limits (Heat Pump only): -7°C to 45°C
Ambient temperature working limits (Total appliance): -7°C to 45°C
Cyber Security updates until: 23 / 10 / 2030
Heat pump refrigerant mass: 0.34kg
Heat pump refrigerant type: R290
Maximum output water temperature (Heat pump only): 65°C
Maximum output water temperature (Total appliance): 75°C
Noise emissions: 43dB

Plumbing Installation
Expansion control valve (max pressure): 600kPa
Pressure limiting valve setting (max pressure): 500kPa
Pressure temperature relief valve: 700kPa

Power requirements
Electric element power input: 1.5kW
Maximum power input (Heat pump input): 0.75kW
Maximum power input (Total appliance): 2.25kW
Power connection: Hard-wired
Rated Power input (Heat pump): 0.43kW
Supply frequency: 50Hz
Supply voltage: 220-240V

Product dimensions
Depth: 630mm
Height: 1658mm
Packaged depth: 695mm
Packaged height: 1940mm
Packaged weight: 116kg
Packaged width: 736mm
Product weight: 91kg
Product weight (filled): 286kg
Width: 600mm

Warranty
Inner cylinder only: 7 years
Inner cylinder only (Commercial): 1 year
Parts and labour: 5 years
Parts and labour (Commercial): 1 year

How to Request Site Specific Quote?

  1. Choose your Installation Type from the dropdown.
  2. Click on Get a Quote
  3. Fill in your details and Upload photos of your existing unit.
  4. One of our specialists will then review your request to formalise your quote.

Technical Specification

Type Heat Pump Hot Water Heater
Storage Capacity 195 litres
Model number HP200M1U1
Location Outdoor or Indoor. Indoor installations need to meet minimum air flow requirements.
Refrigerant: R290
Height 1850 mm
Width 680 mm
Brand Fisher & Paykel/Haier

How are the prices calculated?

  1. Prices calculated are based on the installation type you select above.
  2. All prices are after the government rebates & incentives including the Solar Victoria Rebate
  3. Prices are for like-to-like swap
  4. Additional charges will apply for unit relocation and non-standard switchboards.
  5. Advertised prices are only applicable in Melbourne Metro, Greater Geelong & Mornington Peninsula.

Warranty

  • Storage cylinder: 7 year warranty for the cylinder
  • 5 years warranty on compressor/parts excluding labour
  • 3 year warranty for the onsite labour
View full details

Technologies

LOW GWP REFRIGERANT

Our Heat Pump Water Heater uses R290 which has a global warming potential (GWP) of 3. Many heat pumps use R134A. R290 has a global warming potential that is 476 times lower than R134A. As many refrigerants are strong greenhouse gases, the use of refrigerants with low GWP is seen as a way to minimise the effect of refrigeration systems on global warming.

Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos
Brand Photos

ECO MODE

Eco mode optimizes the benefits of Solar PV and lower cost, time-of-use electricity.The Solar optimisation mode (PV) and time-of use mode (HC) receive a communication signal from an energy management control system (if you have an existing Solar PV system). Alternatively, a timer is used to set heating to the low cost periods of a time-of-use tariff.

LONGEVITY

Using patented technology with a triple layer protection creates a long lasting, acid and alkali corrosion resistant inner tank. The inner tank is tested to over 160,000 cycles to ensure durability over the expected lifetime.

Features & Benefits

Respect for the Planet

Respect for the Planet

Highly efficient compared to electric resistance or gas water heaters, complements Solar PV systems, runs only on electricity, and uses the natural refrigerant R290.

Lower running costs

Lower running costs

The heat pump technology results in a 69-79% reduction in electricity used to heat the same volume of water compared to an electric-resistance water heater.*

Expansive operating range

Expansive operating range

Performance in most Australian climates from -7ºC to 45ºC ambient air temperature.

Adapts to your life

Adapts to your life

Use the SmartHQ™ app on your smartphone to easily select from five modes to best suit your needs, allowing you to adjust heating to lower-cost periods, minimise energy use when you're on vacation, or prioritise solar energy to reduce grid-supply if you have Solar PV.
